EFFICIENT DISTRIBUTION FOR MANY PURPOSES
Fast loading and unloading at ground level in a high payload small truck. With various Boxx-units for many applications, all easily connected without leaving the cab. Save time by pre-loading transport containers, which can optionally rise to loading dock height.
The LiftBoxx is available in 3.5 – 5.0 and 6.5 tonne GVW. Various brands of frontwheel drive cabs available, with choice of EURO 6 diesel, CNG and full electric drivetrains.
The LiftBoxx has been developed to make city distribution more efficient. Increasing lack of space for transport grows the need for efficient and flexible use of small trucks in cities.
LiftBoxx specializes in modular chassis contructions out of high strength steel. This lightweight combination of innovation and meeting many market demands in one vehicle is unique in the world.
Benefits
Time savings (un)loading
Faster by RoRo principle (Roll-on Roll-off). The loading floor or container unit drops in 8 seconds to ground level. With 25 delivery addresses you save 18% or 1,5 hour per vehicle, per day with a LiftBoxx.
Loading at ground level

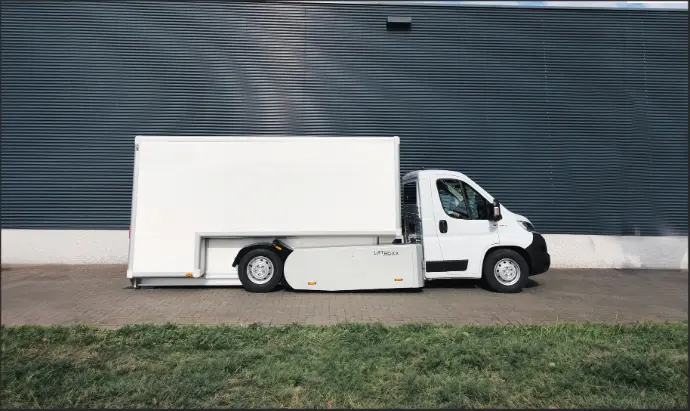

Direct access without any steps. The LiftBoxx drops down its floor down to ground level. Any cargo up to 4.500 mm on even the smallest wheels rolls easily in and out.
End of taillift issues
Less waiting, less accidents, more effective mileage, more payload.
Multi-purpose
With 3 chassis widths and lengths up to 5.000 mm a lot is possible. Connecting a different Boxx type varies the application of the vehicle. Without changing the LiftBoxx vehicle. This makes the system fit for a large array of sectors.
Favourable ergonomics
No more heavy lifting your cargo and climbing into a high Luton van. With the LiftBoxx this will be history. The loading floor lies fully on the ground, which resultats in less kneebending and overloaded joints.
Changeable functions
No more time wasted at distribution centres. While the LiftBoxx driver is moving cargo, the next container is being pre-loaded. In less than 2 minutes the empty Boxx is dropped off and the preloaded unit connected and ready to go. Without leaving the cab.
Out of the boxx applications
From easy transport frames, storage containers, horse boxes, slide-out pop-up stores, mobile workspaces, command posts, camping pods, food stalls, locker boxes, ATM units, emergency service units, or various transport units. It all fits inside the LiftBoxx.
EFFICIENT DISTRIBUTION FOR MANY PURPOSES
Fast loading and unloading at ground level in a high payload small truck. With various Boxx-units for many applications, all easily connected without leaving the cab. Save time by pre-loading transport containers, which can optionally rise to loading dock height.
The LiftBoxx is available in 3.5 – 5.0 and 6.5 tonne GVW. Various brands of frontwheel drive cabs available, with choice of EURO 6 diesel, CNG and full electric drivetrains.
The LiftBoxx has been developed to make city distribution more efficient. Increasing lack of space for transport grows the need for efficient and flexible use of small trucks in cities.
LiftBoxx in modular chassis contructions out of high strength steel. This lightweight combination of innovation and meeting many market demands in one vehicle is unique in the world.
Specifications
Length
up to 5 meter
Hight
Up to 4 meter
max. weight
6.600 KG
Power
up to 180 horsepower
Load capacity
up to 4000 KG

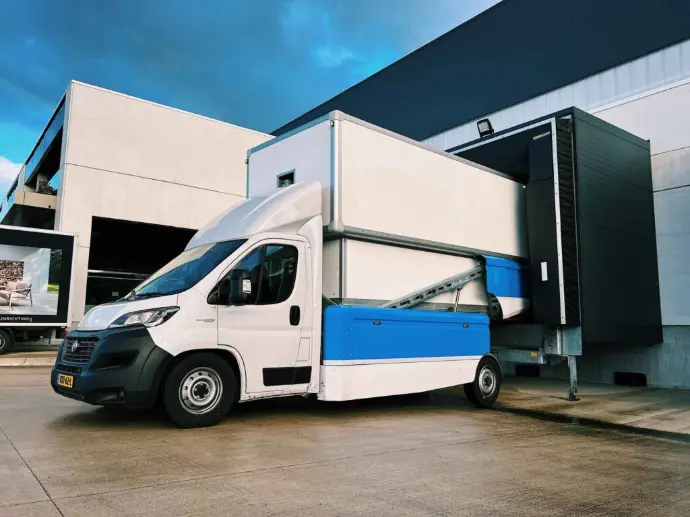

Loading dock
50 mm
CONTAINER BOXX UNITS
The base of each cargo carrier or container unit is formed by a lightweight aluminium floor. The boxx bodywork or mobile tool on top of this floor is almost entirely free to decide. By varying the construction, the application of the entire vehicle to be adjusted. This makes the LiftBoxx available to many sectors, each with their own specific needs.
The Boxx units most commonly used are the SquareBoxx and T-Boxx Maxx with maximum transport volume. These container units can accommodate 6 to 8 pallets including a pump truck.
Open container boxxes or simplified machine platforms are easily drawn up. For the more advanced applications there are slide-out, fold-out or tipping mechanisms available.
| Type | GVW | Capacity | Boxx lenght | Licents |
|---|---|---|---|---|
| XF 35-40 | 3.500 Kg | 1.000 Kg | 2.500 tot 4.000 mm | B |
| XF 50-40 | 5.000 Kg | 2.200 Kg | 2.500 tot 4.500 mm | C1 |
| XF 70-40 | 7.000 Kg | 4.200 Kg | 3.000 tot 5.000 mm | C1 |
